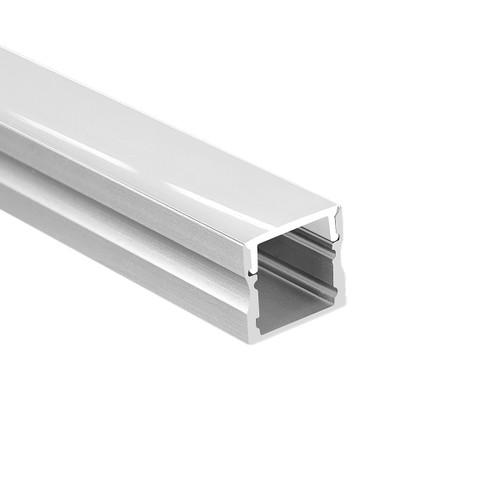

Mounting LED strip within an extrusion not only helps to keep runs straight and neat, it also assists with heat dissipation, therefore prolonging the life of the LED strip. A diffuser finishes off the clean look, and provides protection from dust and water splashes. We have various styles available depending on the application.
Includes diffused cover, end caps & mounting clips.
Includes diffused cover, end caps & mounting clips.
- 2m or 2.5m lengths available
- Aluminium or matt black finish
- Includes opal diffuser
- Includes end caps (2 for 2m, and 4 for 2.5m)
- Includes mounting slips (4 for 2m, and 6 for 2.5m)
- Spare end caps and mounting clips are available to purchase separate
| Product Type | Surface |
| Mounting | Surface Mounted |
| Warranty (yrs) | 1 |
| Warranty (yrs) | 5 |

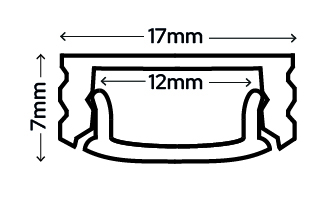

| Width (mm) | 17mm |
| Height (mm) | 7mm |
| Length (mm) | 2000mm |
| Length (mm) | 2500mm |
| Product weight (kg) | 0.239 |
| Housing Finish | Aluminium |
| Housing Finish | Black |
| Housing colour | Aluminium |
| Housing colour | Black |
| Diffuser finish | Opal |
