This sensor switch offers a discreet surface mounted or recessed solution for automatic switching of 12/24Vdc LED lighting. Connection via the Sycamore plug and play connector system allows connected lights to be turned on when it senses movement within a 3 metre distance at a 120 degree beam angle. The built-in timer can be adjusted from 30 to 150 seconds. Unit includes 6-way block.
- Turns lights on and off automatically
- Senses movement to switch lights on and off
- includes connection for 1 light, 12 way block available to purchase separate

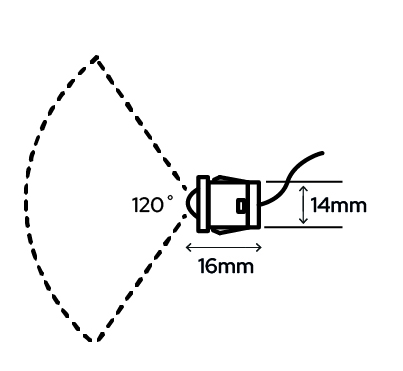

- sensor distance 1 - 3m
- 120 degree sensor range
- Max wattage 12Vdc 100W
- Max wattage 24Vdc 200W
- recessed or surface mounting
| Product Type | PIR Sensor |
| Warranty (yrs) | 1 |
| Depth (mm) | 16mm |
| Cutout (mm) | 14mm |
| Housing Finish | White |
