The Sirius Connect features an innovative plug and play system, in which the cable detaches directly from the back of the light unit enabling the fitting to be installed easily into the base of a cabinet. The Sirius Connect also features a diffused cover, so there are no visible LED points in the fitting, and also has a 120 degree beam angle which fills cabinets or work surfaces, eliminating dark spots.
- 12Vdc (requires 12Vdc power converter)
- ideal for situating within cabinets, cupboards or shelves
- IP44 Rated
- 120 Degree beam angle
- Diffused
| Rated Voltage (V) | 12Vdc |
| Product Type | Diffused Cabinet Light |
| Rated Total Lumens (lm) | 168lm |
| Rated Total Lumens (lm) | 177lm |
| Rated Total Lumens (lm) | 165lm |
| Beam Angle | 120 |
| Mounting | Recessed |
| Mounting | Recessed or Surface Mounted |
| Mounting | Surface Mounted |
| Dimmable Type | Dim |
| Correlated Colour Temperature (K) | 4000K |
| Correlated Colour Temperature (K) | 6000K |
| Correlated Colour Temperature (K) | 3000K |
| Warranty (yrs) | 5 |
| Diameter (mm) | 65mm |
| Depth (mm) | 12.4mm |
| Depth (mm) | 16mm |
| Depth (mm) | 140mm |
| Depth (mm) | 150mm |
| Cutout (mm) | 57mm |
| Housing Finish | Brushed Nickel |
| Shape | Round Recessed |
| Shape | Round Surface |
| Shape | Slim-Line Triangle |
| Shape | Triangle |
| Colour Rendering Index | >80 |
| Cable Length | 2m |
| EU 2019/2015 Energy Efficiency Class | F |
| Width (mm) | 170mm |
| Width (mm) | 126mm |
| Height (mm) | 26mm |
| Height (mm) | 50mm |
| Housing colour | Brushed Nickel |
| Product weight (kg) | 0.083 |

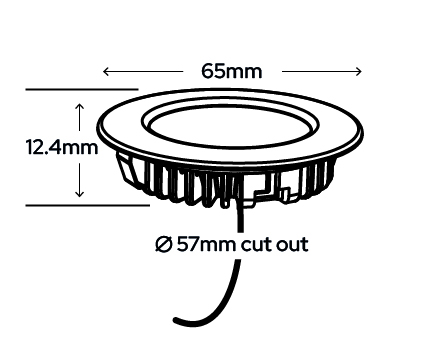

- SY9566NW Sirius Con Line Drawing.jpg
- SY9566WW Sirius Con Line drawing.jpg
- SY9568CW Sirius Con Des Tri Line Drawing.jpg
- SY9568NW Sirius Con Des Tri Line Drawing.jpg

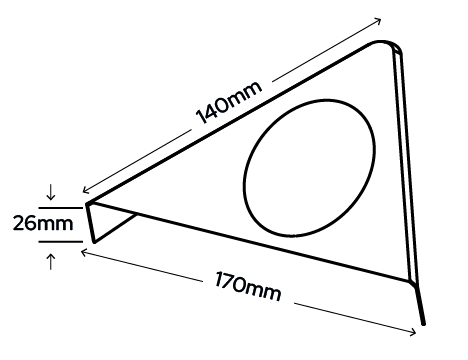

- SY9568WW Sirius Con Des Tri Line Drawing.jpg
- SY9569CW Sirius Con Tri Line Drawing.jpg
- SY9569NW Sirius Con Tri Line Drawing.jpg

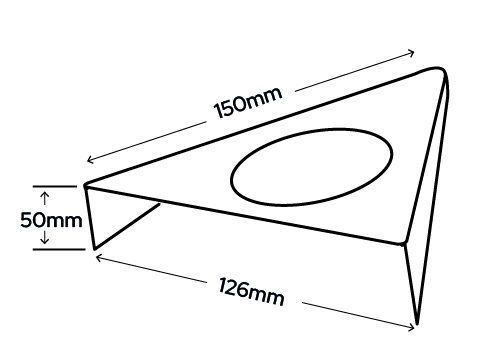

- SY9569WW Sirius Con Tri Line Drawing.jpg
